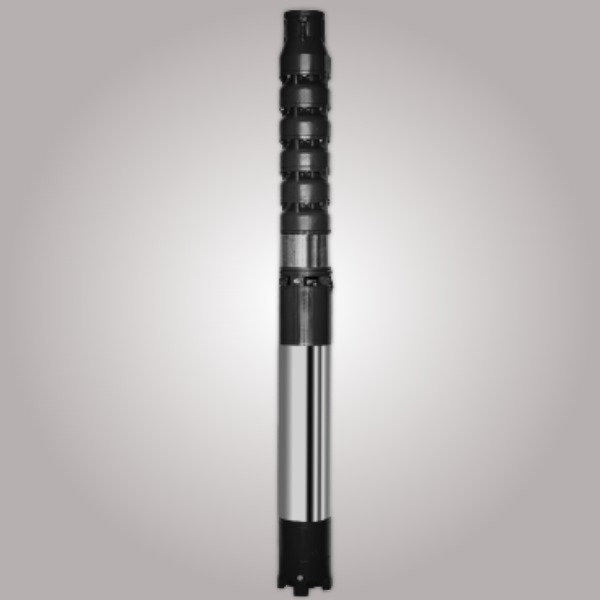

V5 BOREWELL SUBEMERSIBLE PUMP

Category:

Aqaton pumps & pipes makes highly efficient durable and best Quality V5 submersible pumpset with water filled submersible motors.

Salient Feathers

  • High efficient investment casting process diffusers are use with AISI 304 Material.
  • All the rotating parts are balance in precision grade to reduce vibration & noise.
  • All guide bushes are protected with sand guards.
  • Upper thrust provision provided in each model.
  • Pumps are provided with suction guide support.
  • Bearing sleeves are provided with hard crome plating.
  • Carbon V/S Stainless steel thrust bearing are provided to withstand high thrust load.
  • Pumps are Design for maximum water discharge.
  • Winding wires are wrapped with superior polymer to withstand wide voltage fluctuation.
  • Rotors are painted with special epoxy paint for long life.

Applications

  • Irrigation/Sprinkler
  • Commodity water supply.
  • Industrial
  • High rise buildings
  • Sprinklers
  • Unshaped and crooked 6” borehole

Material Of Construction

MOTOR
  • Motor Shaft : Fully Stainless steel AISI 410
  • Stamping : Silicon steel.
  • Casting Part : Cast Iron FG 200 grade
  • Thrust Bearing : Carbon v/s Stainless Steel
  • Copper : EC grade min 99.90%
PUMP
  • Diffuser : AISI 304 investment Casting
  • Impeller : Stainless Steel AISI 410
  • Suction Housing : Cast Iron FG 200 grade
  • Pump Shaft : Fully Stainless Steel AISI 410
  • Sleeve : AISI 410 with hard chrome

Technical Specification

  • Head Range : 24 to 268 meter
  • Discharge Range : 60 to 420 LPM
  • Motor Rating : 3.0 HP to 15.0 HP in three phase. – 380V /415V, 50Hz, AC Supply
    3.0 HP to 5.0 HP in single phase. – 230V, 50HZ, AC Supply
  • Voltage Range : 160V to 250V (1 Phase)
    200V to 440V (3 Phase)
